Bring Your Own OAuth Client

Set up your own OAuth application for integrations to control scopes, enable additional integrations, or replace Langdock’s default OAuth client with your custom configuration.

Custom OAuth clients apply workspace-wide for the specific integration. All new connections will use your OAuth application once configured.

How Custom OAuth Works

When you configure a custom OAuth client, Langdock routes all authentication flows through your OAuth application instead of the default Langdock client. This means:

• Your branding (custom name and logo) appears in consent screens
• Your tenant policies control user access and admin consent requirements
• Your rate limits apply to API calls made by your users

1. Create OAuth App at Provider

   Register a new OAuth application in your provider’s developer portal (Google Cloud Console, Microsoft Azure, etc.).

   Required Configuration:

   • Copy the exact redirect URL from Langdock’s integration settings
   • Select all required scopes shown in Langdock for that integration
   • Configure any tenant-specific settings (admin consent, allowlisting)
2. Gather Credentials

   Note down the following from your OAuth app:

   • Client ID (always required)
   • Client secret (required for most integrations)
   • Tenant ID (optional, shown for Microsoft integrations only)
3. Configure in Langdock

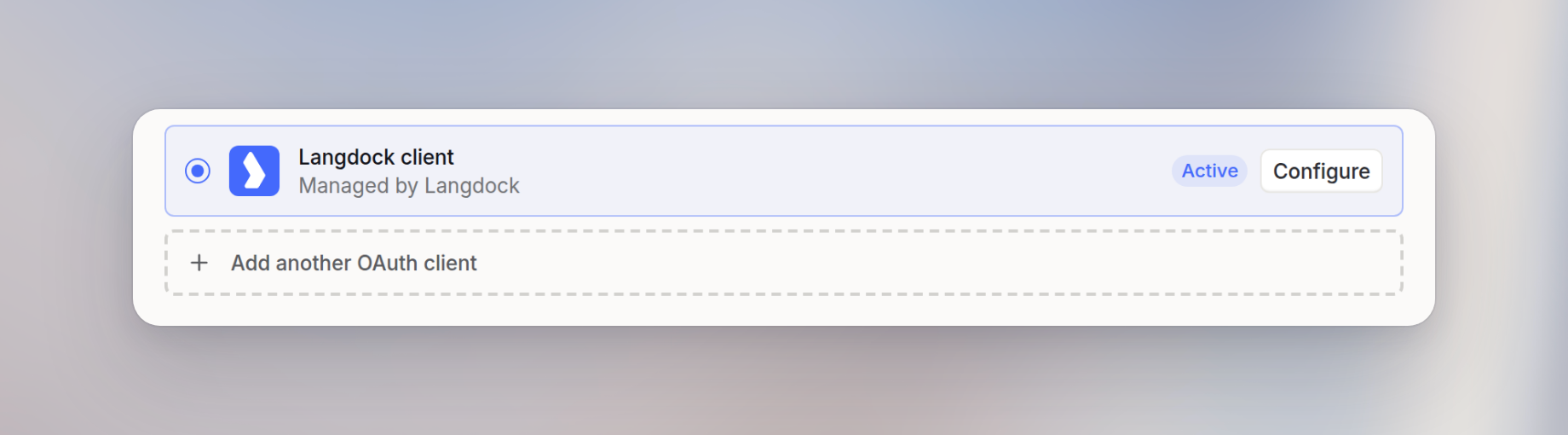

   Navigate to Workspace settings → Integrations and scroll to the Bring your own OAuth Client section. You will see a list of OAuth integrations, each showing its current client status.



   Depending on the integration’s current state, do one of the following:

   • If the integration has a Langdock client available, open the dropdown and select Your client to open the configuration dialog.

   • If no Langdock client exists and no custom client is configured, click the Configure button.

   • If no Langdock client exists and your custom client is already configured, you will see Your client displayed alongside an Edit button. Click Edit to modify your configuration.



   In the configuration dialog, copy the Redirect URL into your OAuth app and review the Scopes section. Make sure all listed scopes are enabled in your OAuth app — missing scopes will cause an insufficient scopes error. You can copy all scopes at once using the copy button.

   For integrations with action-level permissions, we recommend keeping Sync scopes with enabled actions turned on by default. Langdock then requests the auth scopes plus the scopes required by enabled or shared actions, keeping requested scopes aligned with the actions your workspace can use. Learn more in Manage Action-Level Scopes.

   Enter your Client ID and Client secret (and Tenant ID if prompted for Microsoft integrations), then click Save.

   New connections will immediately use your OAuth client and will only work if the credentials are valid. Existing connections continue working until their access tokens expire.

4. Test Authentication

   Have a user connect their account to verify:

   • Consent screen shows your client
   • Required scopes are granted
   • Data access works as expected through actions

Integration Settings Interface

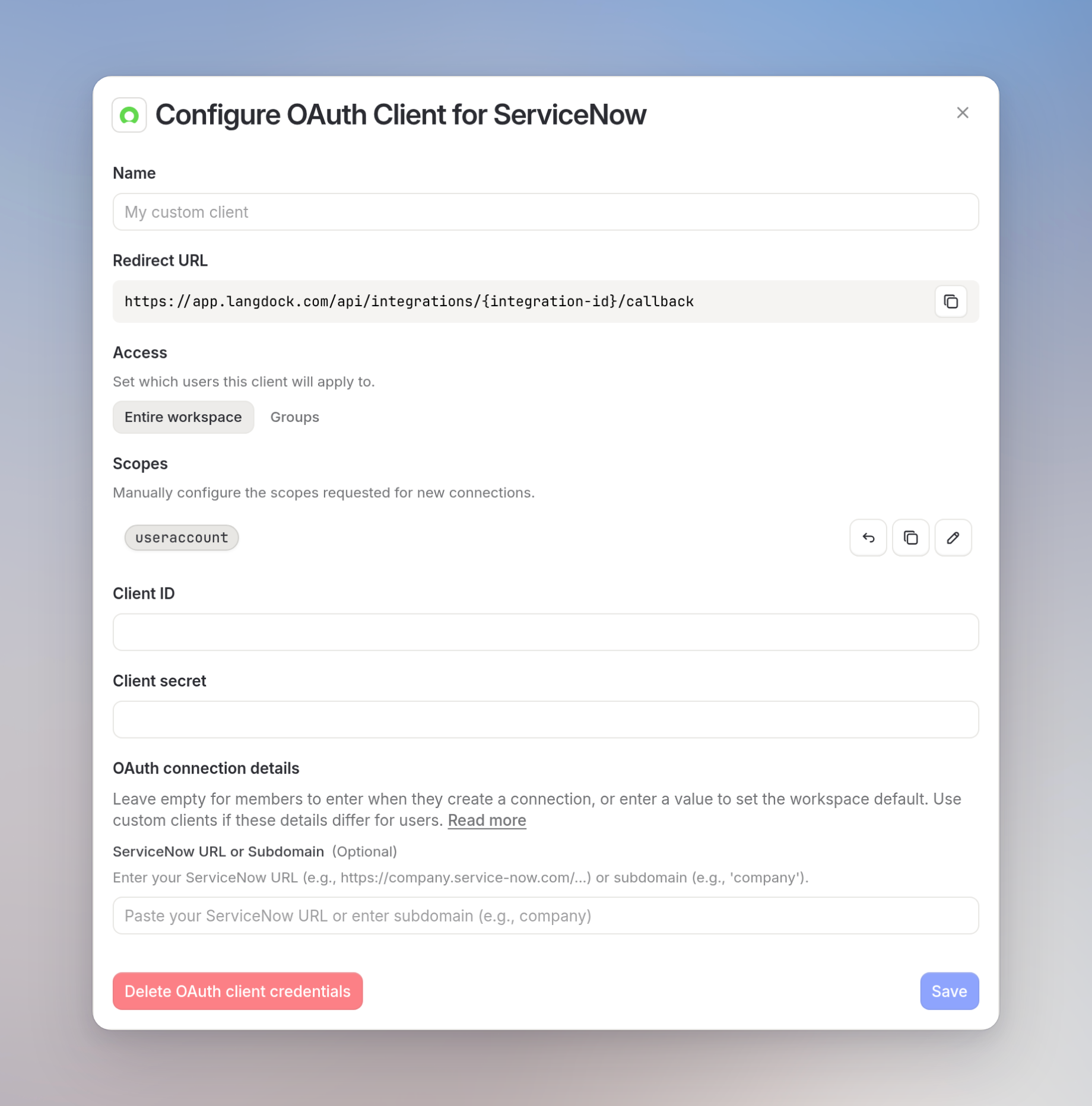

The configuration dialog contains the following sections:

Redirect URL

A read-only field displaying the redirect URL your OAuth app must use. Click the copy button to copy it exactly. The URL format is:

https://app.langdock.com/api/integrations/{integration-id}/callback

The redirect URL must match exactly. Any mismatch will cause redirect_uri_mismatch errors. The exact domain depends on your Langdock deployment — always copy the redirect URL from the dialog rather than constructing it manually.

Scopes

Displays the OAuth scopes required for the integration to function correctly. For example, Jira requires scopes like read:jira-work, write:jira-work, read:jira-user, offline_access, and manage:jira-configuration.

• Copy: Copy all scopes to your clipboard for pasting into your OAuth app configuration.
• Edit: Switch to edit mode to customize scopes in a text area (advanced use cases only).
• Reset to default scopes: Restore the original scope list if you have modified it.

For integrations with action-level permissions, keep Sync scopes with enabled actions turned on unless you intentionally want to manage a fixed scope list yourself. This is the recommended default because Langdock can keep OAuth scopes in sync with enabled and shared actions.

All listed scopes must be enabled in your OAuth app. Missing scopes will cause insufficient_scope errors when users try to connect.

Credentials

Enter your OAuth application credentials:

• Client ID (required): Your app’s public identifier
• Client secret (required for most integrations): Your app’s private key, stored encrypted
• Tenant ID (Microsoft integrations only, optional): Your Azure AD tenant identifier

Switching Back to Langdock’s Client

If you want to stop using your custom client and revert to Langdock’s default:

1. Open the dropdown next to the integration and select Langdock client.
2. Confirm the switch in the dialog.

New connections will use Langdock’s client going forward. Existing connections made with your custom client continue working until their access tokens expire.

Common Configuration Errors

redirect_uri_mismatch

Cause: Redirect URL doesn’t match exactly between Langdock and your OAuth app

Solution:

• Copy the redirect URL from Langdock exactly
• Check for trailing slashes or protocol mismatches
• Verify you’re configuring the correct environment

invalid_client

Cause: Client ID or Client secret is incorrect

Solution:

• Double-check credentials from your OAuth app
• Ensure no extra spaces or characters
• Verify the client is enabled in your provider’s console

consent_required

Cause: Admin consent required but not granted

Solution:

• Grant admin consent in your tenant settings
• Enable user consent if appropriate for your organization
• Check tenant allowlisting requirements

insufficient_scope

Cause: Missing required scopes in your OAuth app

Solution:

• Add all scopes shown in Langdock to your OAuth app
• Users may need to reconnect after adding scopes
• Verify scope names match exactly (case-sensitive)

---

Integrations Requiring Your Own OAuth Client

Some of our integrations can only be used when providing your own OAuth client. Details on how to connect them with Langdock are described in this section.

ServiceNow

Show how to configure a ServiceNow OAuth client

To enable this integration for your workspace, your ServiceNow system administrator must create an OAuth client, in the form of an application registry in ServiceNow, following this documentation.

Required authentication fields

• Provide ServiceNow Subdomain

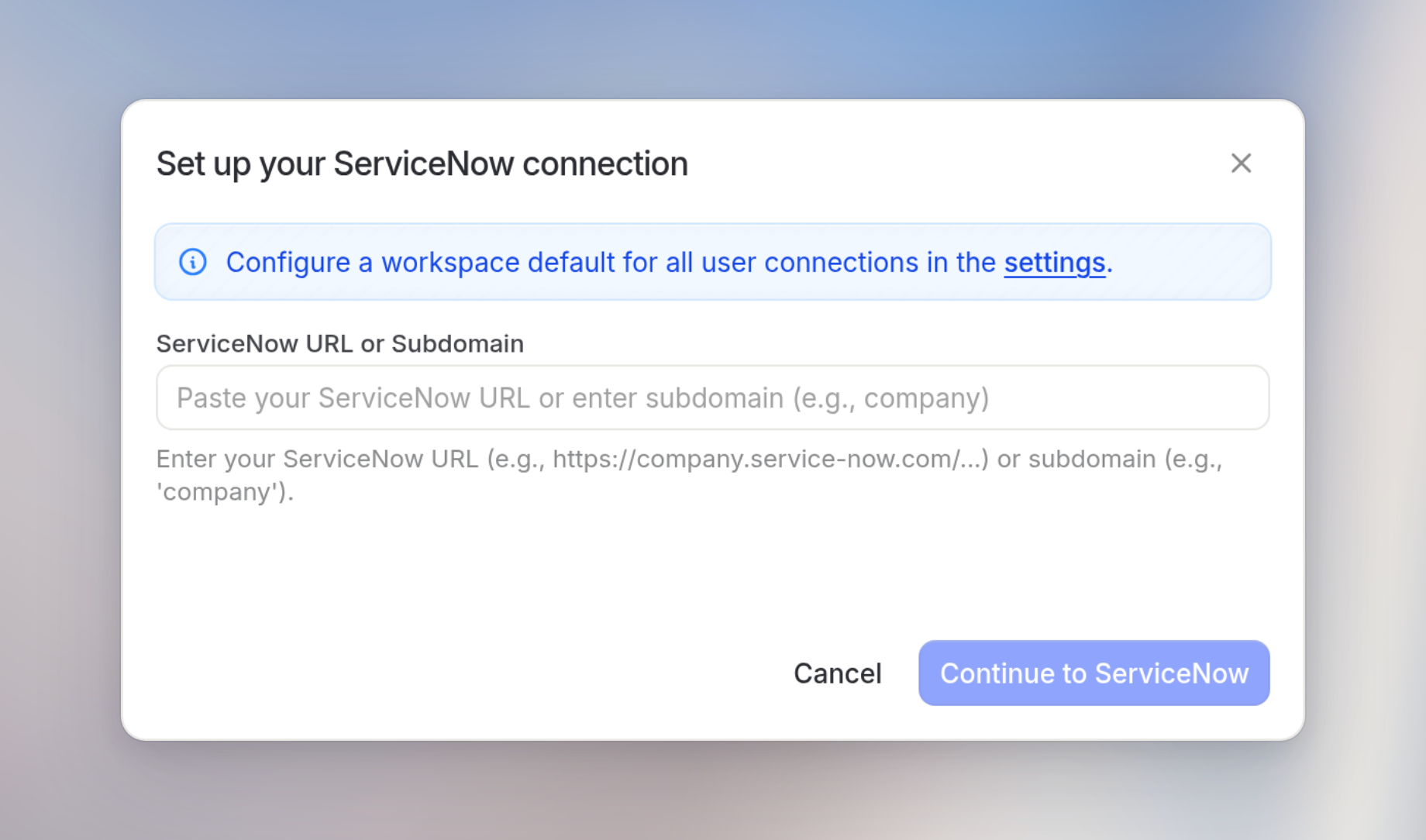

When a user wants to create a connection with ServiceNow, they have to provide the subdomain of your ServiceNow instance.

ServiceNow Integration Requirements

Are self-hosted or cloud-hosted accounts supported?

Only Cloud-hosted accounts are currently supported.

Is a paid ServiceNow plan required?

A paid ServiceNow account is required to create an application registry. View ServiceNow’s plans here.

Are any special account permissions / roles required?

Yes. To connect by OAuth, your systems administrator should set up the right configuration within your instance to connect any user using an OAuth connection. E.g. all users need the oauth_user role to be able to connect.  Learn more about ServiceNow’s groups and permissions

Are there usage limits?

Yes. ServiceNow implements rate limiting to prevent excessive API usage. System administrators can configure rules that restrict the number of inbound REST API requests processed per hour. Learn more about ServiceNow’s usage limits.

Snowflake

Configuring your own OAuth client for Snowflake gives you control over authentication policies, token validity periods, and IP allowlisting within your Snowflake environment.

Show how to configure a Snowflake OAuth client

Required Information:

• OAuth Redirect URL: Copy this from Langdock’s Snowflake integration settings page
• Client ID: Generated by Snowflake after creating the security integration
• Client Secret: Generated by Snowflake after creating the security integration
• Authorization URL: Your Snowflake account’s authorization endpoint

The Redirect URL from Langdock must be provided in Snowflake, while the Client ID, Client Secret, and Authorization URL from Snowflake must be entered into Langdock’s integration settings.

If your Snowflake account has network policies or IP allowlisting enabled, you may need to whitelist Langdock’s static IP address to allow connections. See Static IP Configuration for details.

Setup Guide

1. Create Integration in Langdock

   In your Langdock workspace, create your new Snowflake integration, and set up a custom OAuth Client.

   Show how to set up a custom OAuth client in Langdock

   1. Navigate to Integrations in Langdock
   2. Click “Add Integration” and select “Start from Scratch”
   3. Fill in your preferred name and description for your new Snowflake integration
   4. Click “Create”
   5. Authentication Type: Select “OAuth 2.0” from the dropdown
   6. Authentication fields: Leave blank
   7. OAuth Configuration: Save your OAuth Redirect URL
2. Create Security Integration in Snowflake

   In Snowflake, select your workspace, and create a new security integration.

   Show how to create a new security integration in Snowflake

   1. Create a new .sql file, and paste the following query:

   CREATE SECURITY INTEGRATION <integration_name>
     TYPE = OAUTH
     ENABLED = TRUE
     OAUTH_CLIENT = CUSTOM
     OAUTH_CLIENT_TYPE = CONFIDENTIAL
     OAUTH_REDIRECT_URI = '<your_redirect_uri>'
     OAUTH_ISSUE_REFRESH_TOKENS = TRUE
     OAUTH_REFRESH_TOKEN_VALIDITY = 86400;


   2. Replace <integration_name> with a descriptive name and <your_redirect_uri> with the OAuth Redirect URL from Step 1.
   3. Run the query to create your new security integration in Snowflake. Note: Adjust your OAUTH_REFRESH_TOKEN_VALIDITY value based on your security policies.
3. Retrieve Client ID and Client Secret

   Show how to retrieve your Client ID, and Secret from Snowflake

   1. Within the same workspace, run the following query:

   SELECT SYSTEM$SHOW_OAUTH_CLIENT_SECRETS('<integration_name>');


   2. Replace <integration_name> with the name you gave your security integration in the previous step.
   3. Save your Client ID and Client Secret. Store these credentials securely as they provide access to your Snowflake account.
4. Retrieve Account URL from Snowflake

   Show how to retrieve your Account URL from Snowflake

   1. Click on your account name in the bottom left corner of your Snowflake application
   2. Under the Account Section, click on “View Account Details”
   3. Copy your Account URL
5. Configure Integration Settings in Langdock

   Show how to configure your Snowflake OAuth client in Langdock

   1. Add your Client ID and Client Secret from Step 3 in the respective input fields of your new Langdock integration

   2. In the following sections:

      • Authorization URL
      • Access Token URL
      • Refresh Token URL

      Replace only https://example.com with your Snowflake Account URL from Step 4.

   Example:

   https://example.com/oauth/authorize


   Becomes:

   https://<your-snowflake-account-url>/oauth/authorize


   3. Click Save
6. Test the Connection

   Show how to add a Connection to your Snowflake Integration

   Click “Add Connection” in your Snowflake integration.

   • You should be directed to the Snowflake Authorization screen
   • Log into your Snowflake account

   You have now successfully set up your own OAuth Snowflake integration!
